LALIZAS Rettungsinsel SOLAS OCEANO, Über-Bord-Werfen Selbstaufrichtender Typ

• For use on all types of passenger vessels
• Equipment packs: SOLAS Pack A or SOLAS Pack B
• Available capacities: from 25 to100 persons
• GRP canister
• Durable rubber fabric
• Double chambered tubes
• Stowage height up to 36m (Painter Line up to 46m)
• Insulated floor for low temperature conditions
• High visibility canopy with SOLAS Retroreflective Tapes
• Fully operational at temperatures from - 30°C up to +65°C
• Global Service Stations’ network
• Supplied with deck cradle in wooden box

* The table given below shows the total weight of each liferaft including its canister, without the deck cradle & the wooden box.

Use left and right arrow keys to navigate between tabs.

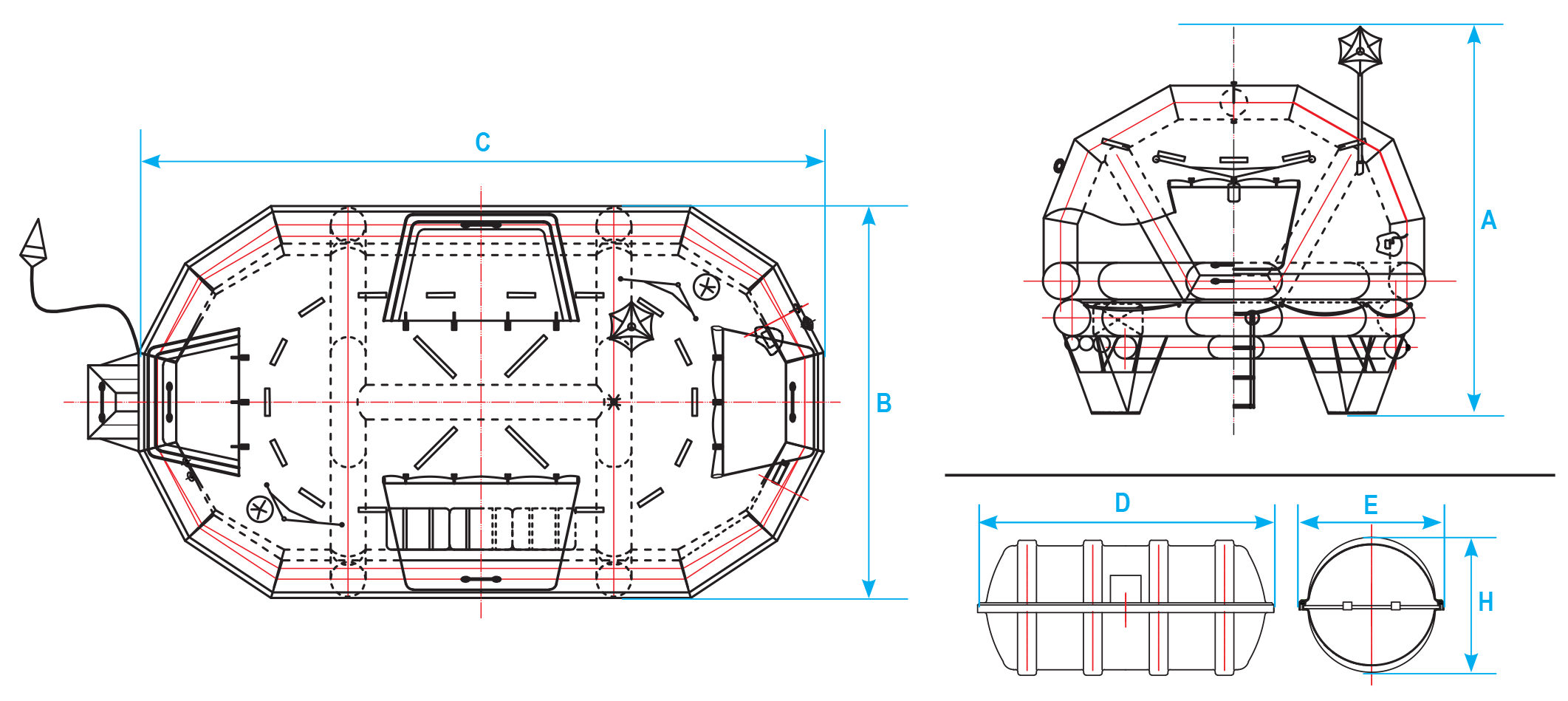

Code	Gewicht (kg)	Max Persons	Α	Β	C	D	Pack	E	H
72549	235	25	2250mm	3130mm	5350mm	1700mm	A	765mm	680mm
72550	395	50	2900mm	4275mm	7470mm	2095mm	A	895mm	877mm
72551	830	100	3400mm	5380mm	11090mm	2400mm	A	1050mm	1050mm
72553	280	50	2900mm	4275mm	7470mm	1800mm	B	810mm	700mm
72554	600	100	3400mm	5380mm	11090mm	2095mm	B	895mm	995mm
